John Guest - Metal Angle Stop Adapter Valve

Product image 1
1 / 3

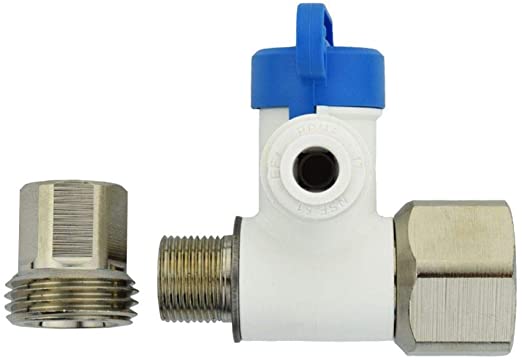

John Guest - Metal Angle Stop Adapter Valve

The John Guest ASVPP Metal Angle Stop Adapter Valve delivers push-fit convenience for quick connections to your main water supply line without tools or threading. This professional-grade valve combines a 1/4 turn chrome-plated ball valve with an integrated check valve, designed specifically for reverse osmosis systems, filtration setups, ice makers, and automatic coffee brewers.
SPECIFICATIONS

Technical Details

Manufacturer John Guest
Model Series ASVPP
Material White polypropylene body with chrome-plated ball valve
Seals Food grade EPDM O-rings
Connection Type Push-fit quick connect technology
Valve Type 1/4 turn ball valve with integral check valve
Installation Location Between angle stop valve and riser to main water supply
Intended Use Potable water applications only
INSTALLATION & USE

Quick Setup Process

  1. Turn off the main water supply and release pressure from the line before installation
  2. Connect the adapter valve between your existing angle stop valve and the riser tube using the push-fit connections
  3. Push tubing firmly into the valve body until it bottoms out, ensuring a secure seal with the EPDM O-rings
  4. Turn the chrome ball valve to the open position and restore water supply, checking for leaks at all connection points
  5. To disconnect, push the collet ring while pulling the tube for tool-free removal
COMPATIBILITY

Approved Applications

The John Guest ASVPP angle stop adapter valve is engineered exclusively for potable water systems including reverse osmosis units, point-of-use filtration systems, residential and commercial ice makers, and automatic coffee brewing equipment. This valve is not rated for compressed air, inert gases, explosive gases, petroleum spirits, fuels, or heating system applications. The food grade EPDM seals and polypropylene construction ensure safe use with drinking water while maintaining NSF standards for water contact materials.

🔧 Pro tip: Before pushing tubing into the valve, cut the tube end square with a sharp blade and inspect for burrs or deformation. A clean, square cut ensures the tube seats properly against the internal grab ring and O-ring, preventing slow leaks that appear hours after installation.
Select Threaded NPT ("National Pipe Thread")
Select Tube Connection OD ("Outer Diameter")
From $6.12

Original: $17.50

-65%
John Guest - Metal Angle Stop Adapter Valve—

$17.50

$6.12

Product Information

Shipping & Returns

Description

The John Guest ASVPP Metal Angle Stop Adapter Valve delivers push-fit convenience for quick connections to your main water supply line without tools or threading. This professional-grade valve combines a 1/4 turn chrome-plated ball valve with an integrated check valve, designed specifically for reverse osmosis systems, filtration setups, ice makers, and automatic coffee brewers.
SPECIFICATIONS

Technical Details

Manufacturer John Guest
Model Series ASVPP
Material White polypropylene body with chrome-plated ball valve
Seals Food grade EPDM O-rings
Connection Type Push-fit quick connect technology
Valve Type 1/4 turn ball valve with integral check valve
Installation Location Between angle stop valve and riser to main water supply
Intended Use Potable water applications only
INSTALLATION & USE

Quick Setup Process

  1. Turn off the main water supply and release pressure from the line before installation
  2. Connect the adapter valve between your existing angle stop valve and the riser tube using the push-fit connections
  3. Push tubing firmly into the valve body until it bottoms out, ensuring a secure seal with the EPDM O-rings
  4. Turn the chrome ball valve to the open position and restore water supply, checking for leaks at all connection points
  5. To disconnect, push the collet ring while pulling the tube for tool-free removal
COMPATIBILITY

Approved Applications

The John Guest ASVPP angle stop adapter valve is engineered exclusively for potable water systems including reverse osmosis units, point-of-use filtration systems, residential and commercial ice makers, and automatic coffee brewing equipment. This valve is not rated for compressed air, inert gases, explosive gases, petroleum spirits, fuels, or heating system applications. The food grade EPDM seals and polypropylene construction ensure safe use with drinking water while maintaining NSF standards for water contact materials.

🔧 Pro tip: Before pushing tubing into the valve, cut the tube end square with a sharp blade and inspect for burrs or deformation. A clean, square cut ensures the tube seats properly against the internal grab ring and O-ring, preventing slow leaks that appear hours after installation.
