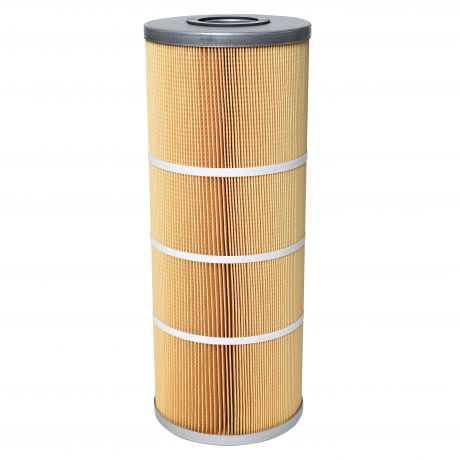

Watts-FMPIC-90-5-HT Flowmax 90 Series Phenolic Cellulose Cartridge 5 Micron
Flowmax 90 Series Phenolic Cellulose Cartridge 5 Micron High Temperature
The Watts FMPIC-90-5-HT is a phenolic-impregnated cellulose pleated filter cartridge designed specifically for Flow-Max Model 40 housings. This jumbo 7 3/4" x 19 1/2" cartridge handles demanding industrial applications including high-temperature water, oil, solvents, and fuel filtration. The 5 micron filtration captures fine sediment while the pleated design maximizes surface area and minimizes pressure drop.
With electro-plated tin end caps, cores, and outer body, this cartridge withstands temperatures from -20°F to 250°F (-29°C to 122°C) and operates at pressures up to 70 psid. Not rated for potable water applications.
| Model Number | FMPIC-90-5-HT |
| Micron Rating | 5 Micron |
| Dimensions | 7 3/4" x 19 1/2" |
| Filter Type | Phenolic Cellulose Pleated |
| Temperature Range | -20°F to 250°F (-29°C to 122°C) |
| Max Pressure | 70 psid |
| Construction | Electro-plated tin end caps and core |
| Applications | Industrial water, oil, solvents, fuel |
High Temperature Rated
Operates reliably from -20°F to 250°F, handling extreme industrial environments where standard filters fail
Jumbo Pleated Design
Increased surface area delivers longer service life and lower pressure drop compared to standard cartridges
Electro-Plated Construction
Tin-plated end caps, core, and outer body resist corrosion in harsh chemical and oil-based applications
Phenolic Impregnated Media
Cellulose media treated with phenolic resin for enhanced chemical resistance and structural integrity
Multi-Fluid Compatibility
Filters industrial water, petroleum-based oils, solvents, and fuels in manufacturing and processing operations
This cartridge is engineered exclusively for Watts Flow-Max Model 40 filter housings. The proprietary dimensions and end cap design ensure proper sealing and performance only in compatible Flow-Max systems. Verify housing model number before ordering. Not compatible with standard 20" Big Blue or other universal housings.
Flow-Max Exclusive
Precision-engineered for Model 40 housings only
Industrial Rated
Non-potable applications in manufacturing environments
Heavy-Duty Build
Handles high temps and aggressive fluids
Low Pressure Drop
Pleated media maintains flow rates
Original: $379.55
-65%$379.55
$132.84Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Flowmax 90 Series Phenolic Cellulose Cartridge 5 Micron High Temperature
The Watts FMPIC-90-5-HT is a phenolic-impregnated cellulose pleated filter cartridge designed specifically for Flow-Max Model 40 housings. This jumbo 7 3/4" x 19 1/2" cartridge handles demanding industrial applications including high-temperature water, oil, solvents, and fuel filtration. The 5 micron filtration captures fine sediment while the pleated design maximizes surface area and minimizes pressure drop.
With electro-plated tin end caps, cores, and outer body, this cartridge withstands temperatures from -20°F to 250°F (-29°C to 122°C) and operates at pressures up to 70 psid. Not rated for potable water applications.
| Model Number | FMPIC-90-5-HT |
| Micron Rating | 5 Micron |
| Dimensions | 7 3/4" x 19 1/2" |
| Filter Type | Phenolic Cellulose Pleated |
| Temperature Range | -20°F to 250°F (-29°C to 122°C) |
| Max Pressure | 70 psid |
| Construction | Electro-plated tin end caps and core |
| Applications | Industrial water, oil, solvents, fuel |
High Temperature Rated
Operates reliably from -20°F to 250°F, handling extreme industrial environments where standard filters fail
Jumbo Pleated Design
Increased surface area delivers longer service life and lower pressure drop compared to standard cartridges
Electro-Plated Construction
Tin-plated end caps, core, and outer body resist corrosion in harsh chemical and oil-based applications
Phenolic Impregnated Media
Cellulose media treated with phenolic resin for enhanced chemical resistance and structural integrity
Multi-Fluid Compatibility
Filters industrial water, petroleum-based oils, solvents, and fuels in manufacturing and processing operations
This cartridge is engineered exclusively for Watts Flow-Max Model 40 filter housings. The proprietary dimensions and end cap design ensure proper sealing and performance only in compatible Flow-Max systems. Verify housing model number before ordering. Not compatible with standard 20" Big Blue or other universal housings.
Flow-Max Exclusive
Precision-engineered for Model 40 housings only
Industrial Rated
Non-potable applications in manufacturing environments
Heavy-Duty Build
Handles high temps and aggressive fluids
Low Pressure Drop
Pleated media maintains flow rates
